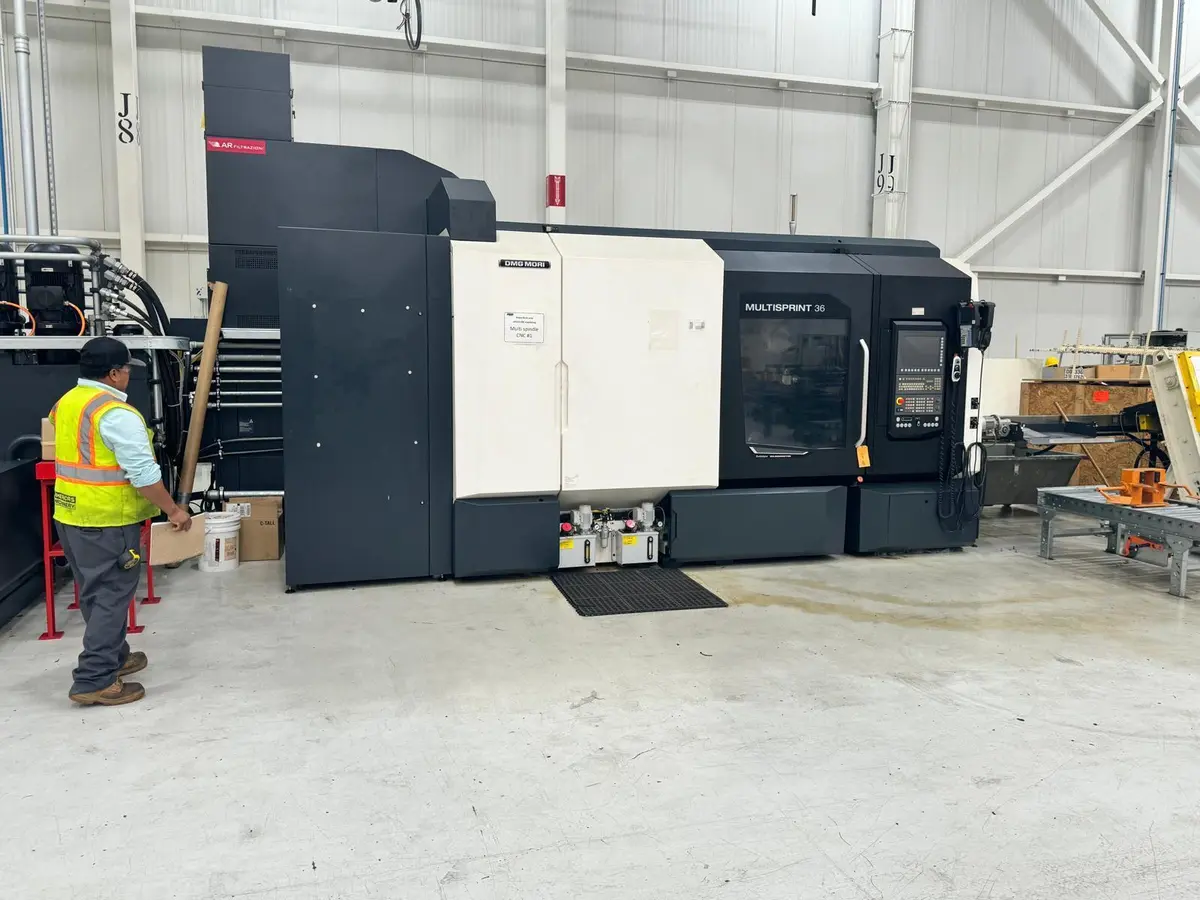

Used 2019 DMG MORI MULTISPRINT 36 | Multiple Spindle Automatic Screw Machines

Description

Max Bar Capacity: 1.41″ (36mm)
Max Bar Feed: 3.93″
Max Bar Feed with SWISSTYPEkit (Code I-B1270): 7.08″

Number of Work Spindles: 6
Spindle pitch circle diameter: 14.96″
Max Spindle Speed: 7500 RPM
Spindle Power: 20 HP
Bar Max Length: 0.13″
Bar Min Loading Length: 0.09″

Number of Units (Cross Slides with X – Y Axes Movements): 6
X-Axis Max Travel Pos.1-6: 1.96″
Y-Axis Max Travel Pos.1-6 mm: +/- 1.96″

Main Spindles Z-Slides
Number of Slides: 6
Z-Axis Travel: 3.93″
Z-Axis Travel Max. Travel with SWISSTYPEkit (Code I-B1270): 7.08″

Machine Weight: 33,000 Lbs.
Machine Dimensions: 401.57″ x 84.65″

Equipped With:
Fanuc 30i-B Control

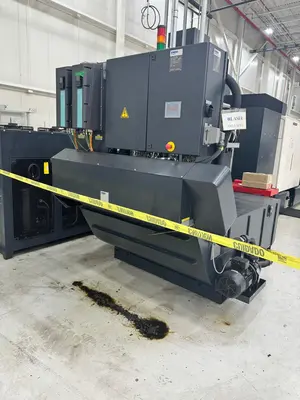

Chip Conveyor, Hinged Type
High Pressure Device 0,25/5/12 MPa
Oil Mist Collector for Oil/Emulsion
Tool-Holder Block with no.3 Quick-Change Junctions
Motor Drive for Tool-Holders 8.000 rpm
Chiller System for Machine & High Pressure Device
(6) Collet Appl. Hainbuch TOPlus 40 W/O Axial Movement
Manual Collet Replacement dev. Hainbuch TOPlus 40
(12) Clamping Collet Type Hainbuch TOPlus 40 Max d.36
Drill/Boring-Holder Ø25mm pos.TH02 Main Spindles
(8) Tool-Holder ext. for KM32 for Main Spindles
Drill/Boring-Holder Ø25mm pos.TH03 Main Spindles
Radial Driven Unit 3900 rpm, Ø16, ext. Cooling
G-Interface for Blank Loading Device
Transformer
DMG MORI SMARTkey Turning package (4 keys)
G- Set of (2) Fanuc Robots in the Working Area for the Workpieces Loading/Unloading
G-Set of (2) Axial Rolling Head FETTE Type
with (2) Sets of Rollers, Pneumatic Device
for Mechanical Reloading
