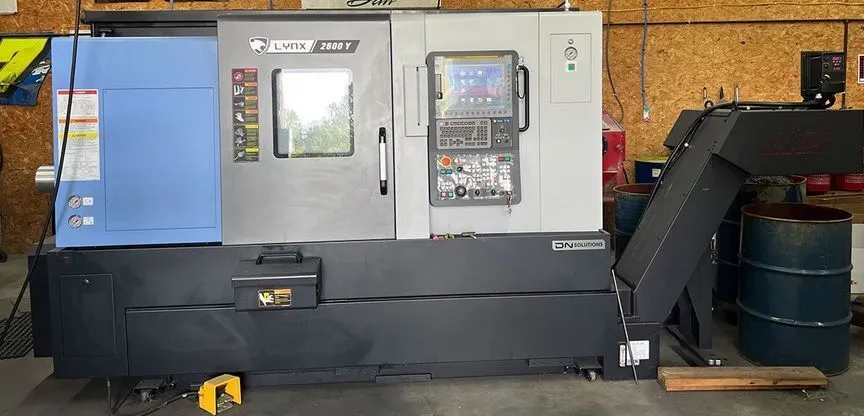

Used 2022 DOOSAN DAEWOO Lynx 2600Y | CNC Lathes

Description

• 25 hp high torque digital AC spindle motor
• Large 3.19" bar capacity
• High speed 3,500 rpm spindle
• High precision pre-tensioned X-axes double nut ball screw with electric torque limiter protection (Airbag Function)
• 12 station heavy duty servo controlled turret with 24 position indexing and (0.15 second) next station index
• Rigid 30-degree one piece cast iron slant bed
• Large 14.96" maximum turning diameter
• Widely spaced, high precision roller type linear motion guideways
• 24.0" maximum turning length
• Fast 1,181 ipm Z axis rapid traverse
• Full contouring C-Axis
• Y axis mill / drill with rigid tapping capabilities on both main spindle and rotary tools. 3 rotating tool holders included in standard tooling package
• 5,000 rpm, 7 hp, rotating tool spindle motor. Live tools can be mounted on all stations
• Y-Axis turret with 4.13” (±2.065”) total travel
• Hydraulic tailstock with MT #4 live center
• Automatic tool setter
• 65 psi multi-stage coolant pump
