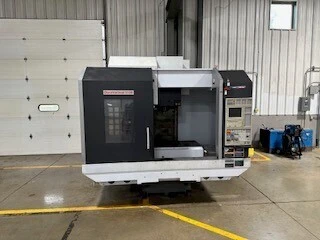

Used 2014 DMG MORI DURAVERTICAL 5100 | CNC Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available
TABLE SIZE ....................................... 53.1" X 23.6"
MAXIMUM TABLE LOAD ................... 2,200 LBS
SPINDLE NOSE TO TABLE TOP ............ 5.9" - 26"
X-AXIS TRAVEL .................................. 41.3"
Y-AXIS TRAVEL .................................. 20.9"
Z-AXIS TRAVEL .................................. 20.1"
RAPID TRAVERSE RATE X/Y/Z ............ 1417/787 IPM
SPINDLE SPEED ................................ 12,000 RPM
SPINDLE TAPER ................................ 40
SPINDLE MOTOR ............................. 20 HP
TOOL CHANGER CAPACITY .............. 30 ATC
MACHINE DIMENSIONS .................. 132" X 95" X 109
MACHINE WEIGHT ......................... 16,000 LBS
Imperial
| X | 41.5" |
| Y | 20.9" |
| Z | 20.1" |
| Power | 15 hp |
| RPM | 10,000 RPM |
| # ATC | 30 |
| Taper | BT40 |
TABLE SIZE ....................................... 53.1" X 23.6"
MAXIMUM TABLE LOAD ................... 2,200 LBS
SPINDLE NOSE TO TABLE TOP ............ 5.9" - 26"
X-AXIS TRAVEL .................................. 41.3"
Y-AXIS TRAVEL .................................. 20.9"
Z-AXIS TRAVEL .................................. 20.1"
RAPID TRAVERSE RATE X/Y/Z ............ 1417/787 IPM
SPINDLE SPEED ................................ 12,000 RPM
SPINDLE TAPER ................................ 40
SPINDLE MOTOR ............................. 20 HP
TOOL CHANGER CAPACITY .............. 30 ATC
MACHINE DIMENSIONS .................. 132" X 95" X 109
MACHINE WEIGHT ......................... 16,000 LBS
